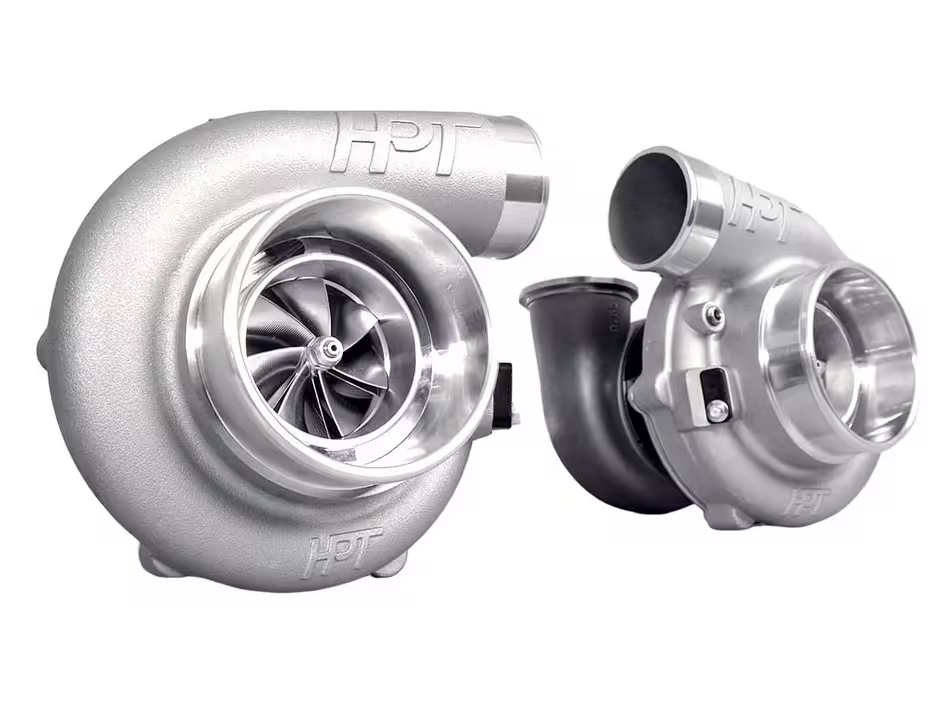

HPT F2 6466 Mirror Image Turbo Kit (V-Band 0.82 A/R)

Capable of supporting up to 1900hp

The F2 6466 Mirror Image Turbos feature HPT’s Quick Spool Technology, providing high efficiency with minimal lag.

Kit includes:

• (1) F2 6466 Standard Rotation Turbocharger 0.82 A/R V-Band In/Out
• (1) F2 6466 Reverse Rotation Turbocharger 0.82 A/R V-Band In/Out
• (2) F2 Stainless Steel Inlet Flanges (2.25")
• (2) F2 Stainless Steel Discharge Flanges (3.00")
• (2) F2 Stainless Steel Inlet Clamps
• (2) F2 Stainless Steel Discharge Clamps
• (2) F2 10AN Oil Drain Fittings

Beyond the bearing system, HPT turbochargers feature superior aerodynamics with lightweight rotating groups. This combination of low resistance bearings and optimized airflow allows for a larger turbo size without compromising transient response.

Features:

• F2 Compressor Cover with Ported Shroud
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Iron Bearing Housing with Integrated Back Plate
• Ceramic Dual Ball Bearing System
• 310 Investment Cast Stainless Steel Turbine Housing

Specifications:

• Compressor Cover Inlet: 4"
• Compressor Cover Discharge: 2 1/2"
• Compressor Wheel Inducer: 64.49mm

• Turbine Wheel Exducer: 66.04mm

Stainless Steel Turbine Housing Options:

• V-Band Inlet V-Band Discharge 0.82 A/R


Race use only, not street legal

We ship throughout Europe. Shipping usually takes 3-4 weeks.

A 2-year warranty is provided.
